UY2 Wire Connector
UY2 connector, dedicated for connecting telephone lines, network cables and monitors

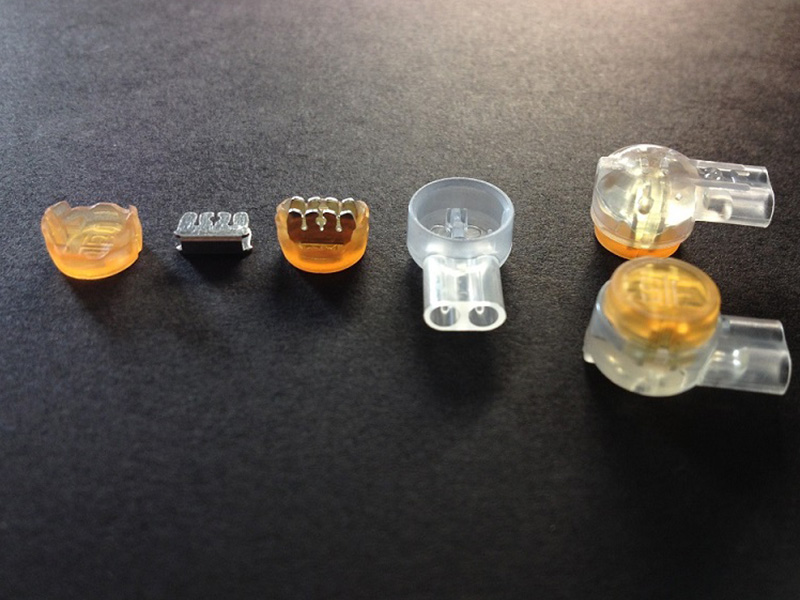

It is suitable for splicing single-core copper wires 0.9~0.4mm(19~26AWG). It contains a stripping knife set and waterproof colloid inside to protect the line splicing points from moisture or harsh environments.
UY2 connector with small size, no need to strip wires is easy to use. It is currently the most commonly used line splicing material in the weak current and communications industries.
UY connector can connect two wires of any wire diameter (within the applicable wire diameter range)
Specifications
| Connector | Type Connectio | Max. Insulation O.D. Metric (mm) In | Cable Type | ||||
| PIC-Unfilled Metric (mm) AWG | PIC-filled Metric (mm) AWG | Pulp or Paper Metric (mm) AWG | |||||
 |
 |
2.08 .082 | .9 - .4 19-26 | .9 - .4 19-26 | .9 - .4 19-26 | ||
Characteristics
| TEST | RESULT |
| Vibration Heat / Cold Stress Relaxation High humidity (△R) Temperature Cycle | 2.0 milliohm change< |
| Wire Pull Out | Average: Greater than 90% Control wire Breaking Strength. Minimum: Not less than 60% Control wire Breaking Strength. |
| High Humidity Insulation Resistance | Greater than 1011 |
| Water Soak Insulation Resistance | Greater than 109 |
| Dielectric strength | Greater than 3.0kv AC |
| Max. recommenced voltage | 400V DC |
| Max. recommended amperage | 10A |
