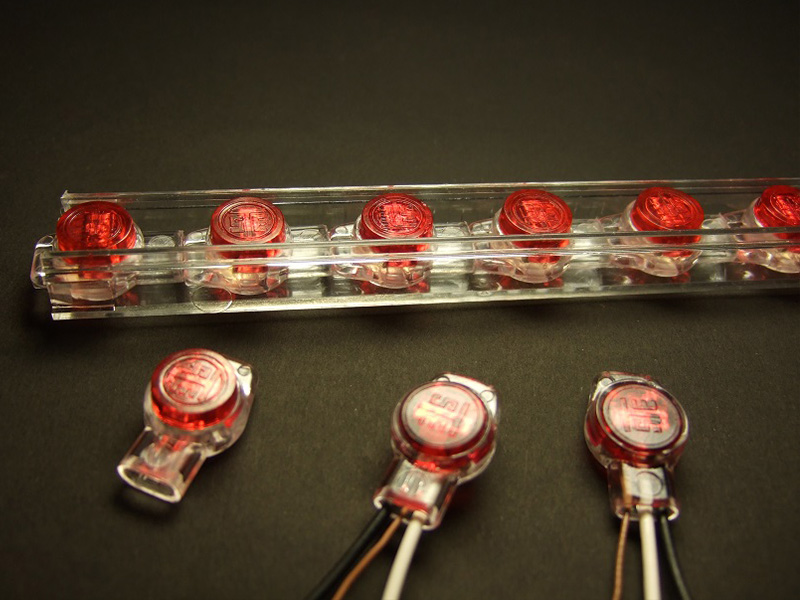

UR Wire Connector

It is suitable for splicing single-core copper wires. UR connector has the features of no stripping, good insulation, beautiful appearance and durability, and saves construction time.

The function is suitable for telecommunications cables and automobile wires, industrial signal lines, and straight-line connection; UR connector contains a stripping knife set and waterproof colloid inside to protect the line connection points from moisture or harsh environments. Small size, no need to strip wires, and easy to use, it is the most commonly used wire splicing material in the communications industry.

Specifications
Connector Type Connectio Max. Insulation O.D. Metric (mm) In Cable Type
PIC-Unfilled Metric (mm) AWG PIC-filled Metric (mm) AWG Pulp or Paper Metric (mm) AWG
1.67 .066 .9 - .4 19-26 .9 - .4 22-26 .9 - .4 19-26
Characteristics
TESTRESULT
Vibration  Heat / Cold  Stress Relaxation
High humidity (△R)  Temperature Cycle
2.0 milliohm change<
Wire Pull OutGreater than 90% Control wire   Breaking Strength
High Humidity  Insulation ResistanceGreater than 1011
Water Soak  Insulation ResistanceGreater than 109
Dielectric strengthGreater than 3.0kv AC
Max. recommenced voltage400V DC
Max. recommended amperage10A
