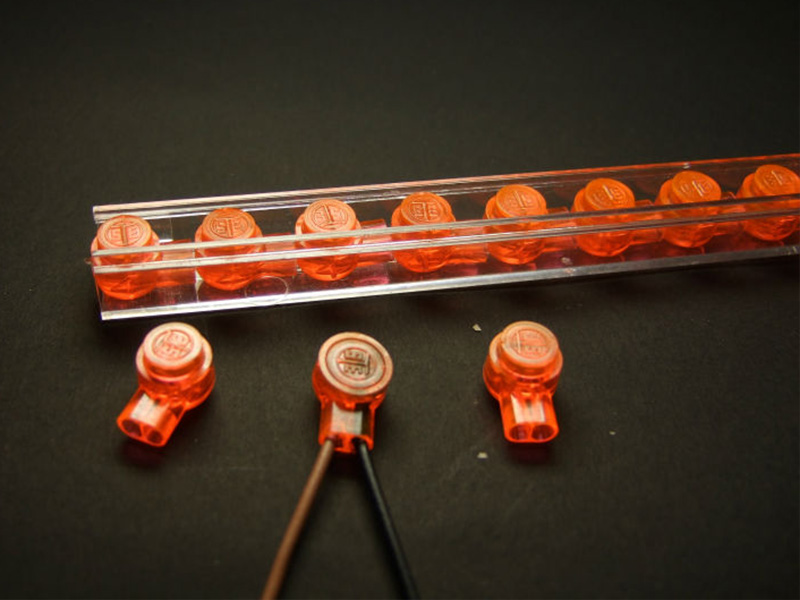

UCC Wire Terminator
Moisture-resistant UCC wire Terminator isolates a full cable Pair. The conductors are held rigidly in place with a Plastic blade, accepts any two wire combination of 0.65 mm-0.4mm(22-26AWG) filled or 0.7-0.4mm(19-26AWG) air core cables have a maximum Insulation O.D.
Specifications
| Connector | Type Connectio | Max. Insulation O.D. Metric (mm) In | Cable Type | ||||
| PIC-Unfilled Metric (mm) AWG | PIC-filled Metric (mm) AWG | Pulp or Paper Metric (mm) AWG | |||||
 |
 |
1.52 .060 | .7 - .4 22-26 | .7 - .4 22-26 | .7 - .4 22-26 | ||
