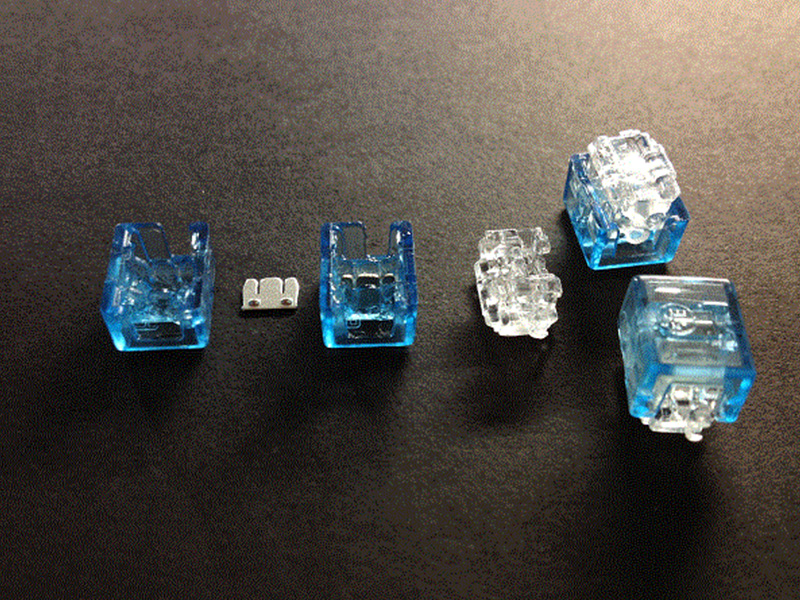

UB Connector
A pair of cables are provided for connection. You can choose one of the cables. After the connection, continue to extend the back end to connect other devices. UB connector is suitable for quick connection of wires for micro power. It is easy and fast operation, and can be widely used in various electromechanical equipment, household appliances, and distribution lines.

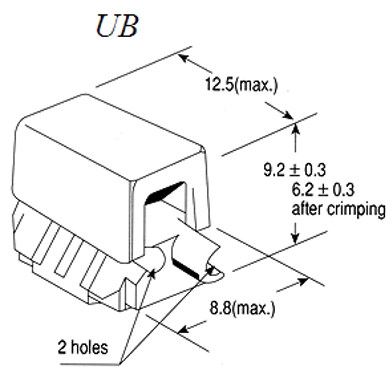

Specifications
When wiring, there is no need to remove the insulation layer of the wire. Directly insert the wire end into the wiring hole of the terminal block, and the connection can be completed with a simple one-time press.
| Connector | Type Connectio | Max. Insulation O.D. Metric (mm) In | Cable Type | Cable Type | Cable Type | ||
| Type Connectio | Max. Insulation O.D. Metric (mm) In | PIC-Unfilled Metric (mm) AWG | PIC-filled Metric (mm) AWG | Pulp or Paper Metric (mm) AWG | |||
 |
 |
1.27 .050 | .7 - .4 22-26 | .7 - .4 24-26 | .9 - .4 22-26 | ||
Characteristics
| TEST | RESULT |
| Vibration Heat / Cold Stress Relaxation High humidity (△R) Temperature Cycle | 2.0 milliohm change< |
| Wire Pull Out | Greater than 90% Control wire Breaking Strength |
| High Humidity Insulation Resistance | Greater than 1011 |
| Water Soak Insulation Resistance | Greater than 109 |
| Dielectric strength | Greater than 3.0kv AC |
