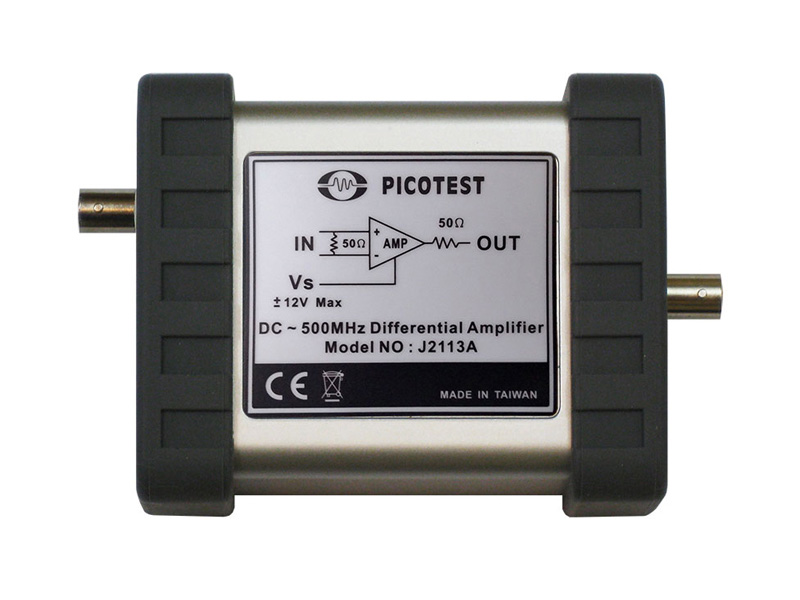

J2113A Semi-Floating Differential Amplifier – Ground Loop Breaker
Key Features

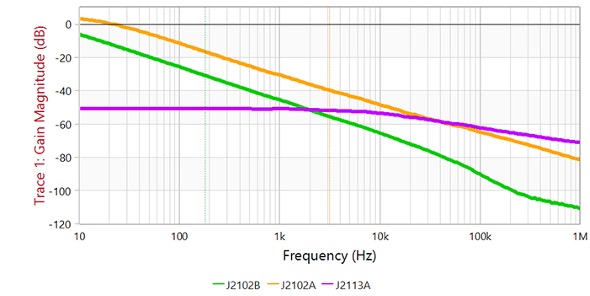

- Eliminates DC ground loop down to 1Hz
- Works up to 800MHz (-3dB)
- Supports the 2 Port Shunt Thru impedance measurement required for Power Distribution Networks (PDNs)
- Works with all types of test equipment to eliminate ground loops, such as Network Analyzers, Oscilloscopes and Spectrum Analyzers
- Popular for oscilloscopes – isolate probe grounds – J2113A is optimized for pulse response
- Perfect for component measurements
- Excellent CMMR performance
Specifications
| Characteristic | Rating |
| Recommended Bandwidth | DC-800 MHz (-3dB), DC-700MHz (-1dB) |

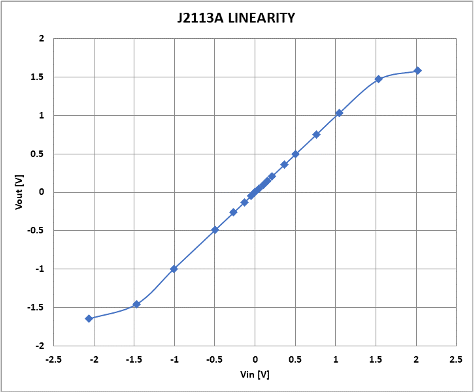

| Maximum Voltage | 1.9V |
| CMRR | > 57dB |
| Temperature Range | 0-50°C |
| Maximum Altitude | 6000 Ft |
| Absolute Maximum Voltage | is +/- 2V |
* Performance at -10dBm input level.
To avoid equipment damage and/or severe injuries or death ensure that the absolute maximum ratings are observed and not exceeded at all times.
