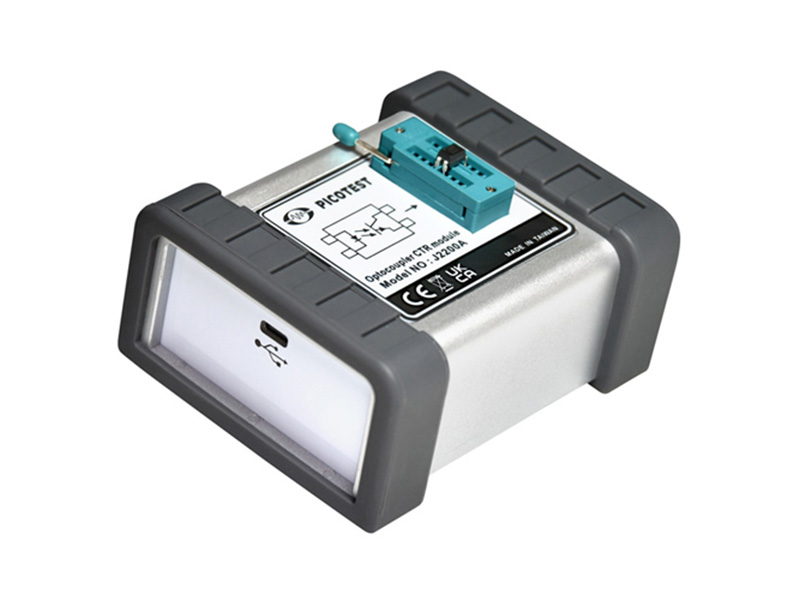

J2200A Optocoupler CTR Measurement Kit (Injector only)
The J2200A optocoupler test instrument provides various bias conditions for optocouplers and greatly eases the measurement of key parameters, including CTR. The J2200A provides pulse current mode measurement function, which reduces the temperature rise during the testing process improving the accuracy of the measurement. Optocoupler procurement is often exempted from incoming component inspection, but given counterfeit products are appearing in the market, optocoupler inspection has become more necessary. The J2200A is a very convenient tool for IQC.
Key Features
- Opto-Coupler Measurement: CTR (Current Transfer Ratio), ΔCTR, Vf and ΔRd, Saturation, Bandwidth
- Design Tool: Plug-and-Play testing for 4 and 6-pin optocouplers
- Easy wiring and control
- Works with the M352XA 6 ½ Digit Multimeter (DMM) for high-speed control, test setup, and data gathering
- Works with the OMICRON Lab Bode 100 VNA for AC Gain and Phase measurements
Applications
- R&D Testing Speeds Opto Measurement
- IQC Inspection Testing
- Easy wiring and control
