J2130A DC Bias Injector
When using the network analyzer to measure impedance, such as the capacitance and ESR or a capacitor, or the DCR of an inductor, etc., it is often necessary to provide a voltage bias to the device being tested. This is true of semiconductor junction capacitances, varactors, and some ceramic capacitors (especially X5R). In these cases the impedance is a function of the DC bias on the device. The Picotest DC bias injector (J2130A) is used for this purpose during impedance measurements.
Key Features
- 10Hz-10MHz usable bandwidth Low loss design
- Easily measure varactors, junction capacitance
- Measure X5R capacitor voltage sensitivity
- Bias low power transistor amplifiers and diodes for parameter extraction
Specifications
Characteristic | Typical | Units | Conditions |
| Maximum DC Bias | 50 | VDC | |
| Bias Resistance | 10k | Ohms | |
| Maximum Bias Current | 5m | A | At 50V |

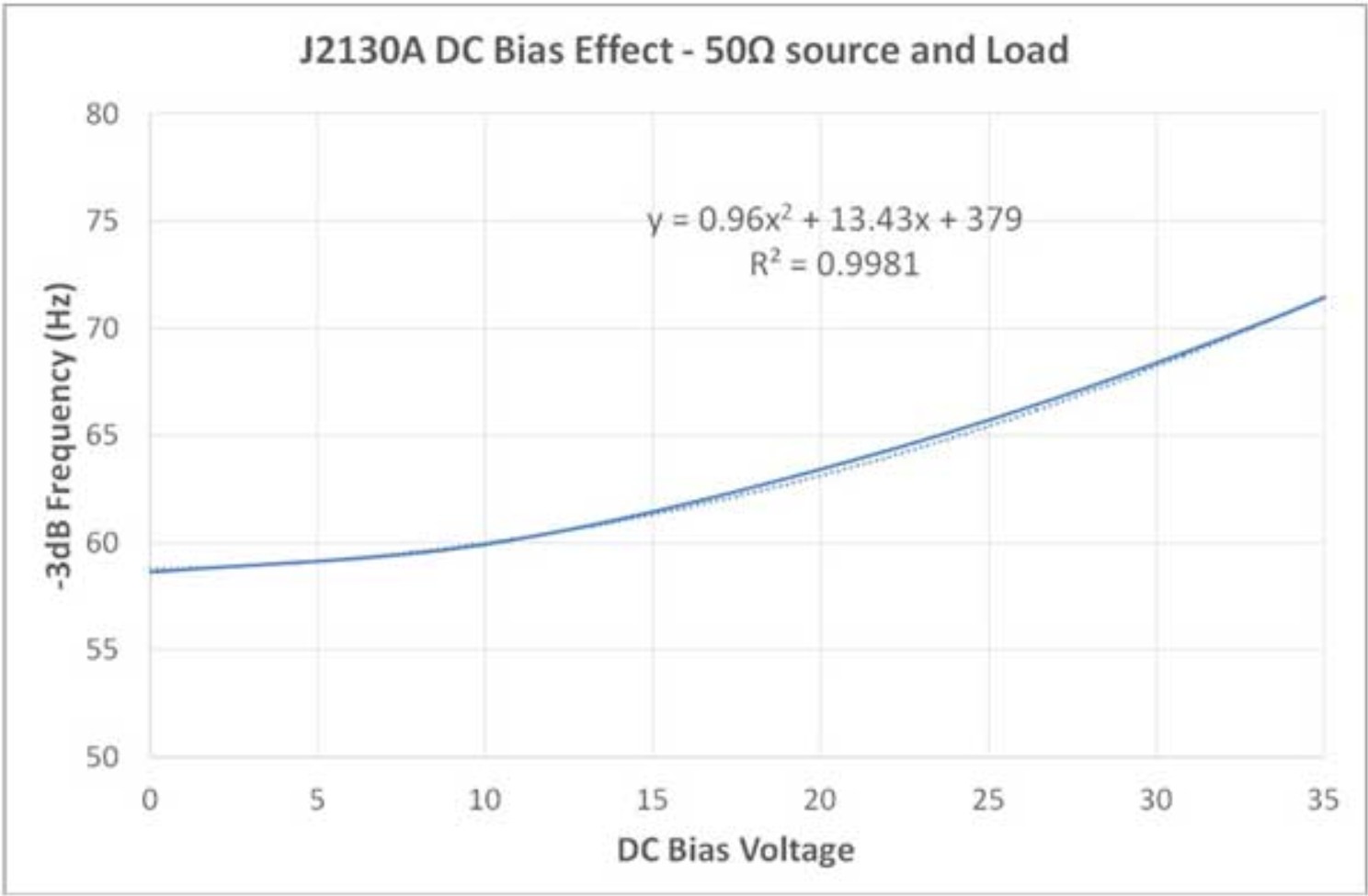

| Frequency Response | 15-40M+ | Hz | Frequency Sweep 10Hz~500MHz, Power=-10dBm |
| Temperature Range | 0-50 | °C | |
| Maximum Altitude | 6000 | Ft | |
| Absolute Maximum Input-Output Voltage | 50 | V | Differential |
| Absolute Maximum Voltage | < 50VAC and 75VDC |
