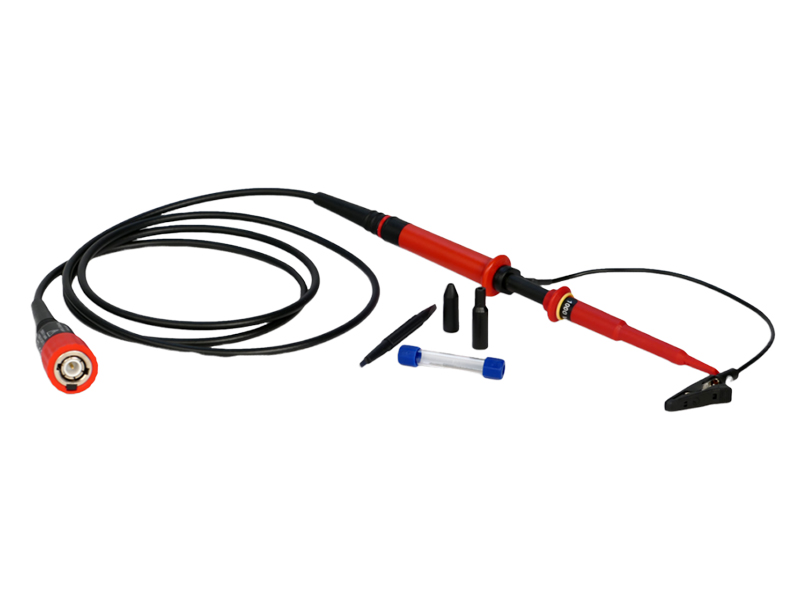

Passive 100:1 Probe PHV 1000-O
The PHV 1000-O is a passive 100:1 probe manufactured by PMK, optimized for the use with Bode 100. It is based on the PHV high-voltage series of PMK
Use the PHV 1000-O to
- Perform accurate loop gain measurements at higher voltages
- Protect the input channels of your Bode 100
Key Features
- 5 mm probe design
- 50 MΩ || 7.5 pF input impedance
- Exchangeable gold-plated spring-tip
- Attenuation ratio: 100:1
- Maximum working voltage: 2000 V
Delivery includes
- Probe PHV 1000-O with spring tip and protective cap 5.0-L
- Solid probe tip (CuBe 0.8 mm)
- Ground lead (22cm)
- Sprung hook 5.0-L
- Insulating cap 5.0-L
- Adjustment Tool T
- Printed user-manual in English language
