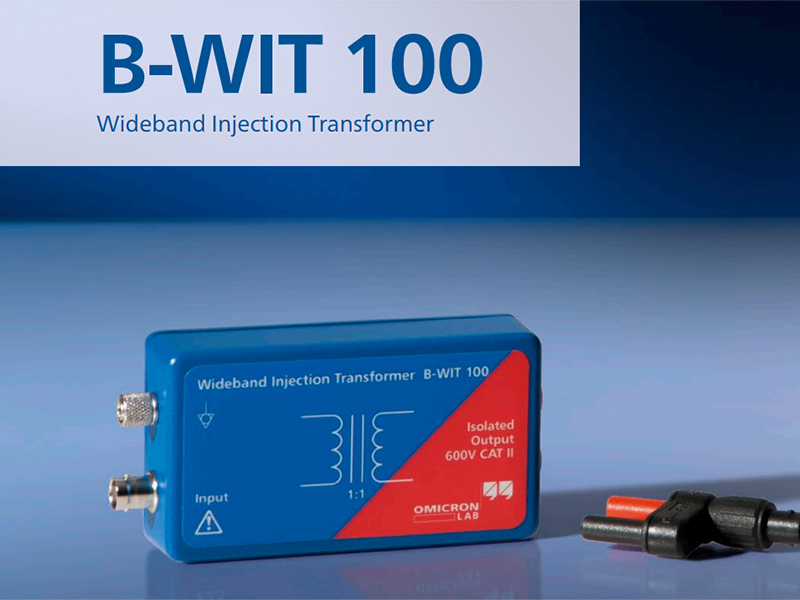

Wideband Injection Transformer B-WIT 100
B-WIT
B-WIT 100 combines a wide usable frequency range (1Hz – 10 MHz) with safe isolation rated to 600V CAT II.
The wide frequency range ensures that the B-WIT 100 can be used for the analysis of slow control loops (low loop bandwidth) as well as very fast control loops (high loop bandwidth).
Check out the application note “DC/DC converter stability measurement” to learn how to measure the loop gain of a voltage regulator using the Bode 100 in combination with the B-WIT 100 injection transformer.
Key Features
- Optimized for signal insertion into control loops
- Extremely wide usable frequency range: 1 Hz – 10 MHz
- High linearity & low insertion loss
- Safe isolation rated to 600 V CAT II
Technical Data
- Usable frequency range: 1 Hz – 10 MHz
- –3 dB frequency range: 7 Hz – 5 MHz (typ.)
- Insertion loss: < 0.5 dB @ 10 kHz
- Turns ratio: 1:1
- Pri-Sec capacitance: 120 pF @ 1 kHz (typ.)
Application
- Phase/Gain Margin
- Bode
