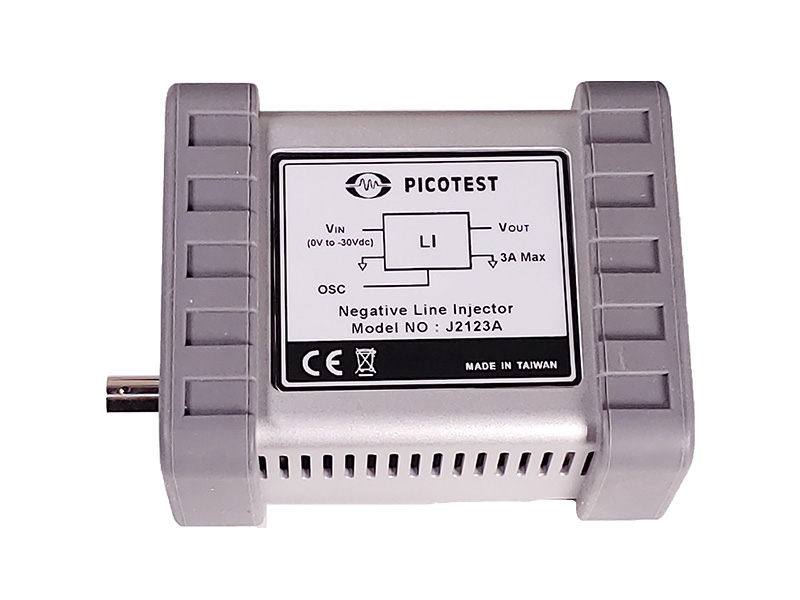

The J2123A negative voltage line injector, like the J2120A positive voltage line injector, is used to superimpose an AC modulation signal on a DC source voltage for Power Supply Rejection Ratio (PSRR), Power Supply Modulation Ratio (PSMR), and Audio Amplifier Common-Mode Rejection Ratio (CMRR) testing. These applications require very low output noise, as well as a low output impedance over a wide bandwidth.
Key Features
- Negative voltage line injector
- Modulate a DC Power Source Voltage
- Combines modulation signal with bus voltage
- 10Hz-50MHz usable bandwidth
- Low Impedance, Low Noise, and Low Voltage-Compliance
- 3 Amps maximum current
- -30VDC max input
- Easily measure input filters and PSRR
